PPS Charging System

PPS adalah sebuah teknologi yang dapat mengonversikan arus, sehingga power supply dapat secara otomatis menyesuaikan tegangan output dan arus sesuai dengan spesifikasi perangkat (smartphone) yang digunakan. Voltase berkisar antara 3 - 12 volt. PPS ini juga menyertakan "PPS Voltage Step Test" dan "PPS Current Limit test" untuk memastikan bahwa penyesuaian arus dan voltase selama proses pengisian sesuai standar yang ditetapkan.

Spesifikasi :

Color : Black
Total Output : 240W Max

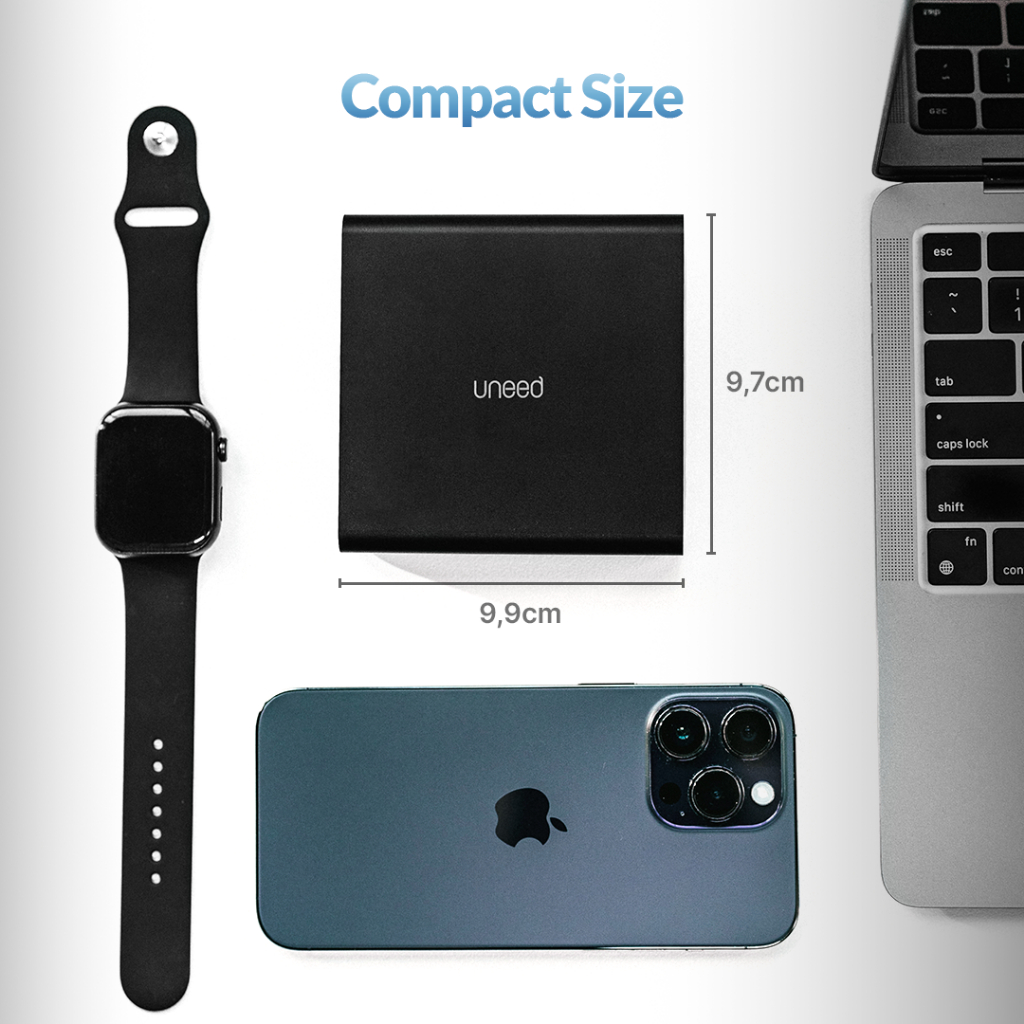

Dimension : 100 x 31 x 101mm
Input Voltage : 110-240V~50/60Hz 3.5A
Port Output :
Type C1 : 5V⎓ 3A, 9V⎓ 3A, 12V⎓ 3A, 15V⎓ 3A, 20V⎓ 5A, 28V⎓ 5A
Type C2 : 5V⎓ 3A, 9V⎓ 3A, 12V⎓ 3A, 15V⎓ 3A, 20V⎓ 5A
Type C3 : 5V⎓ 3A, 9V⎓ 3A, 12V⎓ 3A, 15V⎓ 3A, 20V⎓ 5A
Type C4 : 5V⎓ 3A, 9V⎓ 3A, 12V⎓ 3A, 15V⎓ 3A, 20V⎓ 5A
USB A1 : 5V⎓ 3A, 9V⎓ 3A, 12V⎓ 2.5A
USB A2 : 5V⎓ 3A, 9V⎓ 3A, 12V⎓ 2.5A
Sharing Power:
Type C1 + Type C2/C3/C4 : 140W+100W;USB -C2+C3/C4:100W+100W
Type C3 + C4 : 100W+100W;USB -C1+A1/A2:140W+30W
Type C2 + USB A1/A2 : 100W+30W;USB-C3+A1/A2:100W+30W
Type C4 + USB A1/A2 : 100W+30W;USB-A1+A2:25W
Type C1 + C2 + C3/C4 : 100W+95W+45W
Type C1 + Type C3 + Type C4 : 100W+95W+45W
Type C1 + Type C3/C4 + USB A1/A2 : 100W+100W+30W
Type C1/C2/C3/C4 + USB A1 + USB A2 : 100W+25W
Type C2 + Type C3 + Type C4 : 100W+95W+45W
Type C2 + Type C3/C4 + Type A1/A2 : 100W+100W+30W
Type C2 + Type C3 + USB A2 : 100W+65W+30W
Type C3 + Type C4 + USB A1/A2 : 100W+100W+30W
Type C1 + Type C2 + Type C3 +Type C4/A1/A2 : 100W+65W+45W+30W
Type C1 + Type C2 + Type C4 + USB A1/A2 : 100W+65W+45W+30W
Type C1 + Type C3 + Type C4 + USB A1/A2 : 100W+65W+45W+30W
Type C2 + Type C3 + Type C4 + USB A1/A2 : 100W+65W+45W+30W
Type C2 + Type C3/C4 + USB A1 + USB A2 : 100W+100W+25W
Type C3 + Type C4 +（USB A1+A2) : 100W+100W+25W
Type C1 + Type C2 + Type C3 + Type C4 + USB A1/A2 : 100W+67W+30W+25W+18W
Type C1/C2 + C3+C4+（A1+A2) : 100W+67W+45W+25W
Type C1 + Type C2 + Type C3/C4+ USB（A1+A2) : 100W+67W+45W+25W
Type C1 + Type C2 + Type C3 + Type C4 + USB（A1+A2) : 100W+45W+45W+25W+25W

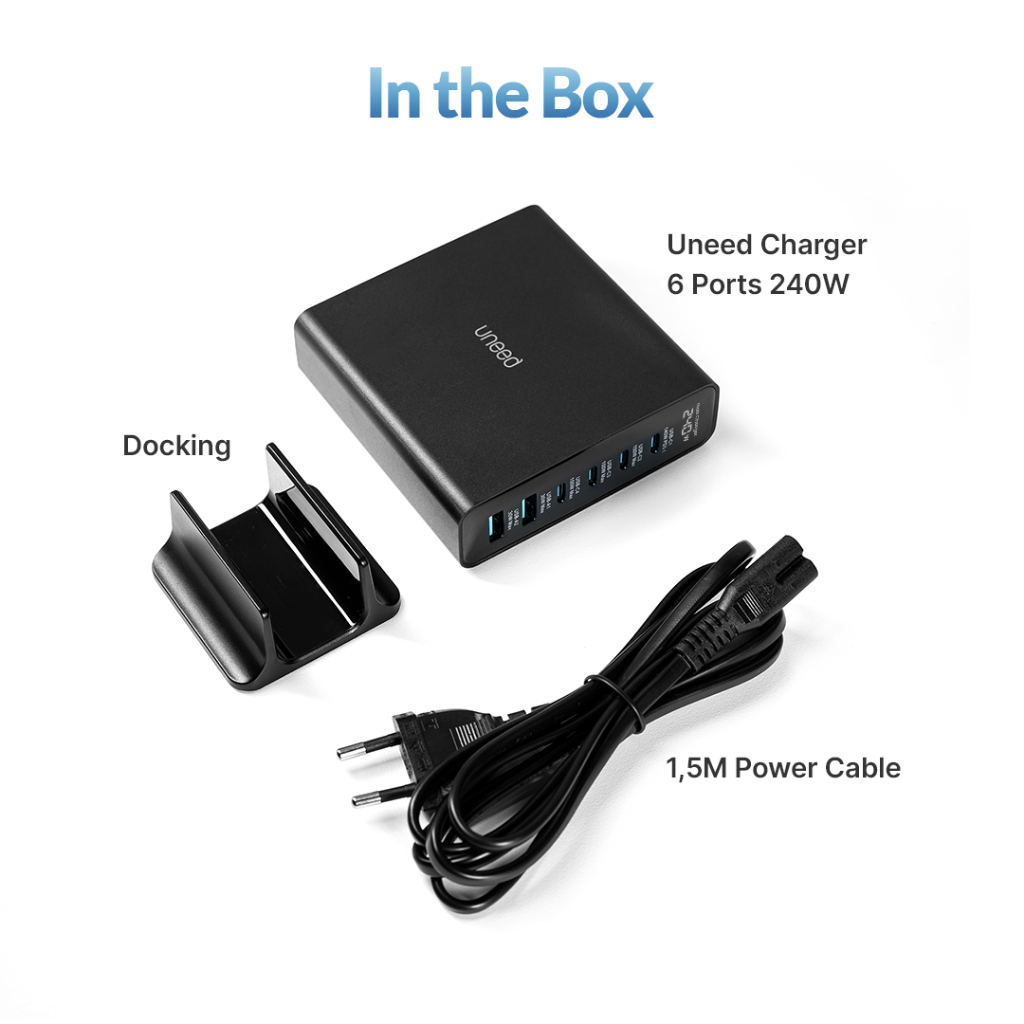

What’s in the Box

- UNEED GaN Charger UCH482

- Cable Power (Length ±1.5Meter)

- Docking

- Manual Book

- Warranty Card

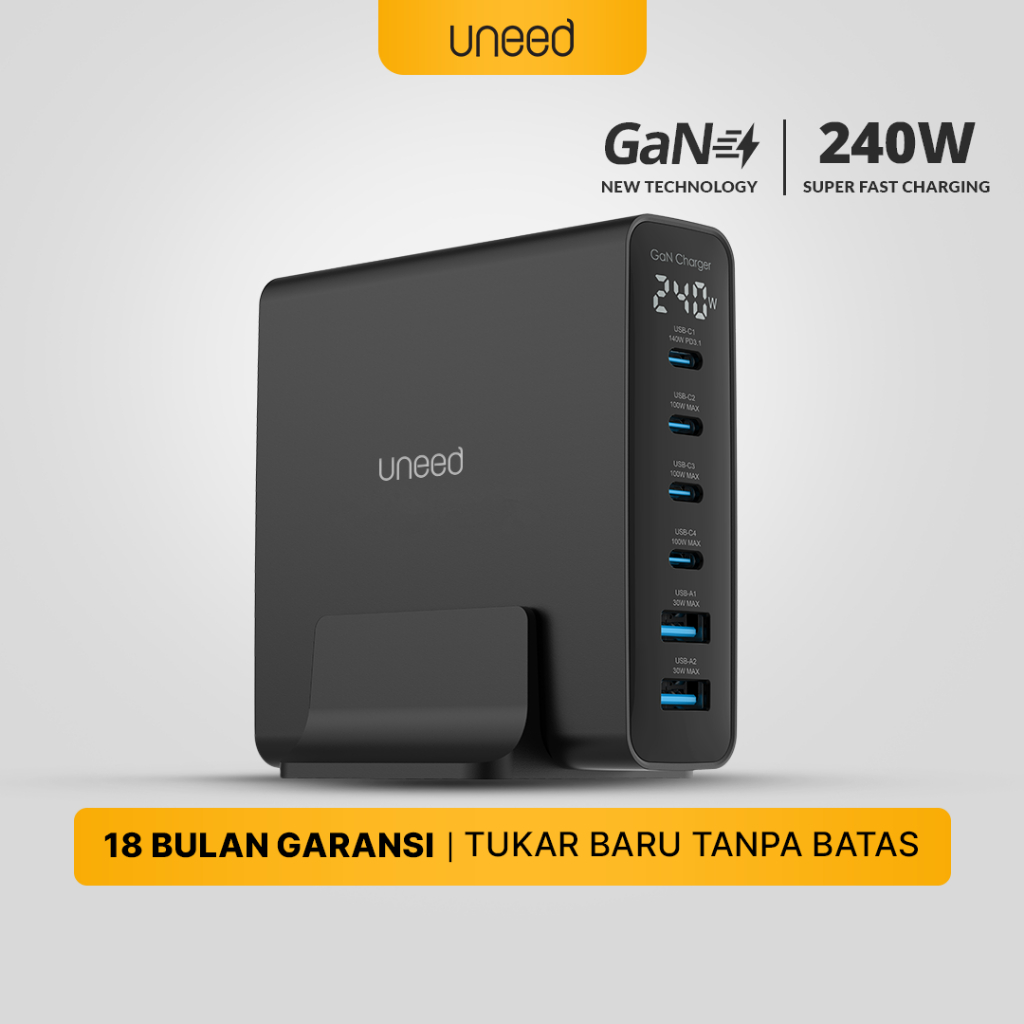

UNEED GaN Charger 240W with Display PPS QC 4.0 PD 3.0 AFC - UCH482
